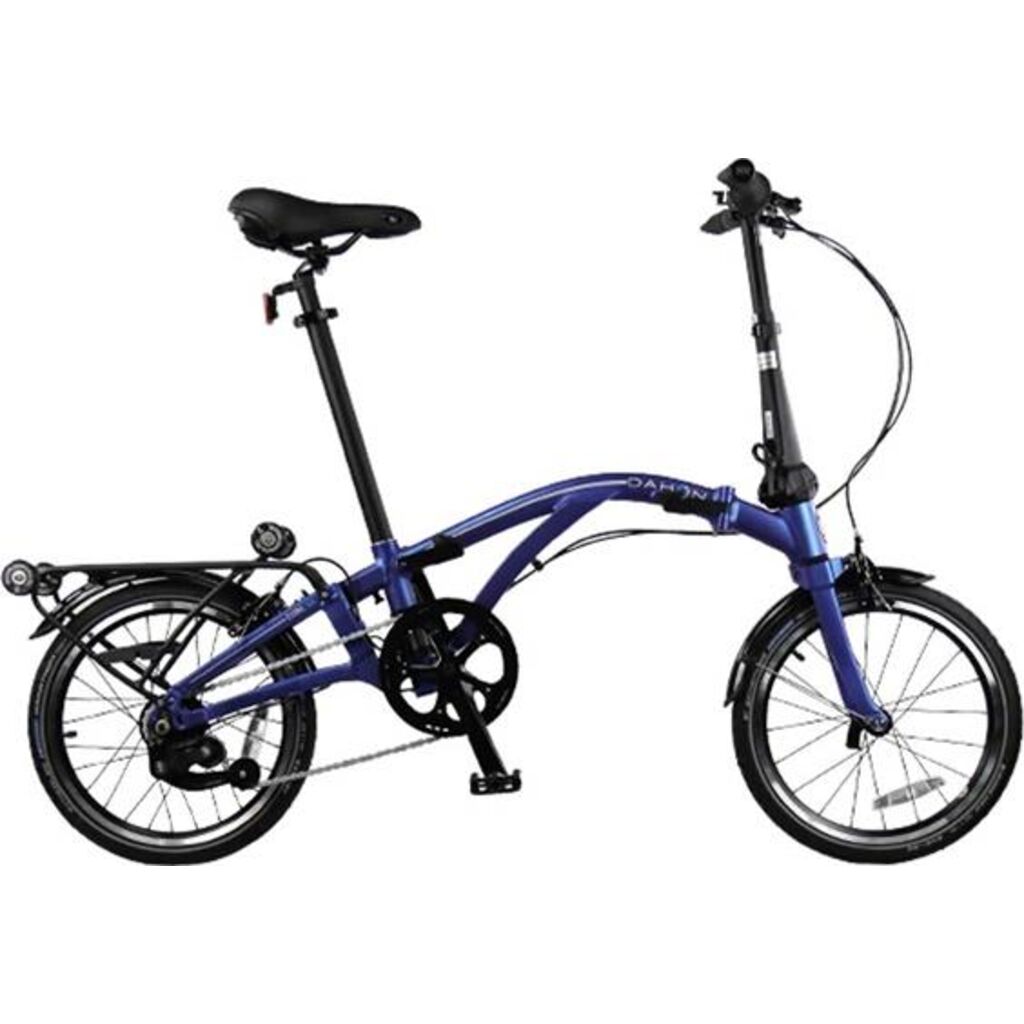

CURL i8 Wheels Bike
The CURL i8 features three-point folding in a hydroformed Dalloy frame with oversized rectangular tubes, as well as a rear wheel flip-fold. Double down-tubes approach a front triangle and the V-shaped coupling between the front and rear triangles turns the bike into a hard-tail. The bike also features strong removable pedals and a roller rack for easy wheeling when folded. A telescopic handlebar post and seat post allow for ergonomic adjustment for riders up to 190 cm and 150cm.
FRAME
DAHON Patented Flip Frame with Autolatch, Dalloy Aluminum, Suspension Rear Built-In Carrier/Roller
Model Number CUA644H
Weight 12.7kg (27.99 Ibs)
Fork Dally aluminum, integrated patented Fusion technology
Handlepost Radius Telescope, adjustable, patented Fusion and V-Clamp technologies, forged aluminum
Rims 349mm Lightweight Aluminum Double Wall w/CNC
Front Hub DAHON Mini, Aluminum sealed
Rear Hub Shimano Nexus 8 speed
Spokes 14 g Stainless Steel
Tires Schwalbe Marathon
Cranks DAHON Custom 3/32" x 46T x 170 mm
Bottom Bracket Sealed Bearing
Chain KMC Z1
Cassette Shimano 16 Tooth
Shifters Shimano Nexus Twist Shifter
Handlebar DAHON Urban 490 mm Wide w/ 9 Degree Sweep
Grips DAHON Ergo Comfort
Brakes TEKTRO Dual Pivot Aluminum caliper brakes
